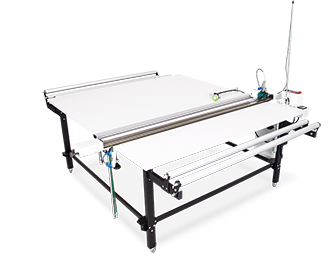

WindMaster Super
WindMaster rewinding machine transfer fabric from bulk rolls to smaller rolls, precisely measuring and cutting it to the desired length. WindMaster machines eliminate waste and the inaccuracy of tape measures. A digital counter assures millimetre-level precision, and automatic cutting gives repeatable results across every order. WindMaster Super is built on a light but very rigid frame. The table top is 25 mm thick, edged with 2 mm PVC tape, ensuring high durability and safe operation. Thanks to the modular design, it is possible to create tables of various sizes and equipment configurations. Main features of the Super version:
Additional optional equipment:
If you need automatic rewinding, check the WindMaster PRO.
Use configurator! You can configure this product by using a configurator. Technical data
Cutting width:
170 cm (optionally up to 320 cm)
Table length:
200 cm
Table height:
87-90 cm (regulated)
Table top thickness:
25 mm
Table frame:
modular, made of steel profiles
powder laquered
anodized aluminum elements
Holding bar:
pneumatic, operated
with a button or a foot pedal
Cutting settings:
setting cutting width
adjustable counter of cuts
Measurement device:
digital counter
Fabric feeder:
basket for rolls up to 50 cm diameter
Cutting unit:
high-speed automatic version
Cutting height:
up to 5 mm
Cutting precision:
1 mm
Cutting speed:
1 m/s (optionally adjustable)
Rotational speed:
12,000 rpm (optionally adjustable)
Power:
250 W
Voltage:
230 V
|
|
|
Available versions
 3718 € net
|
